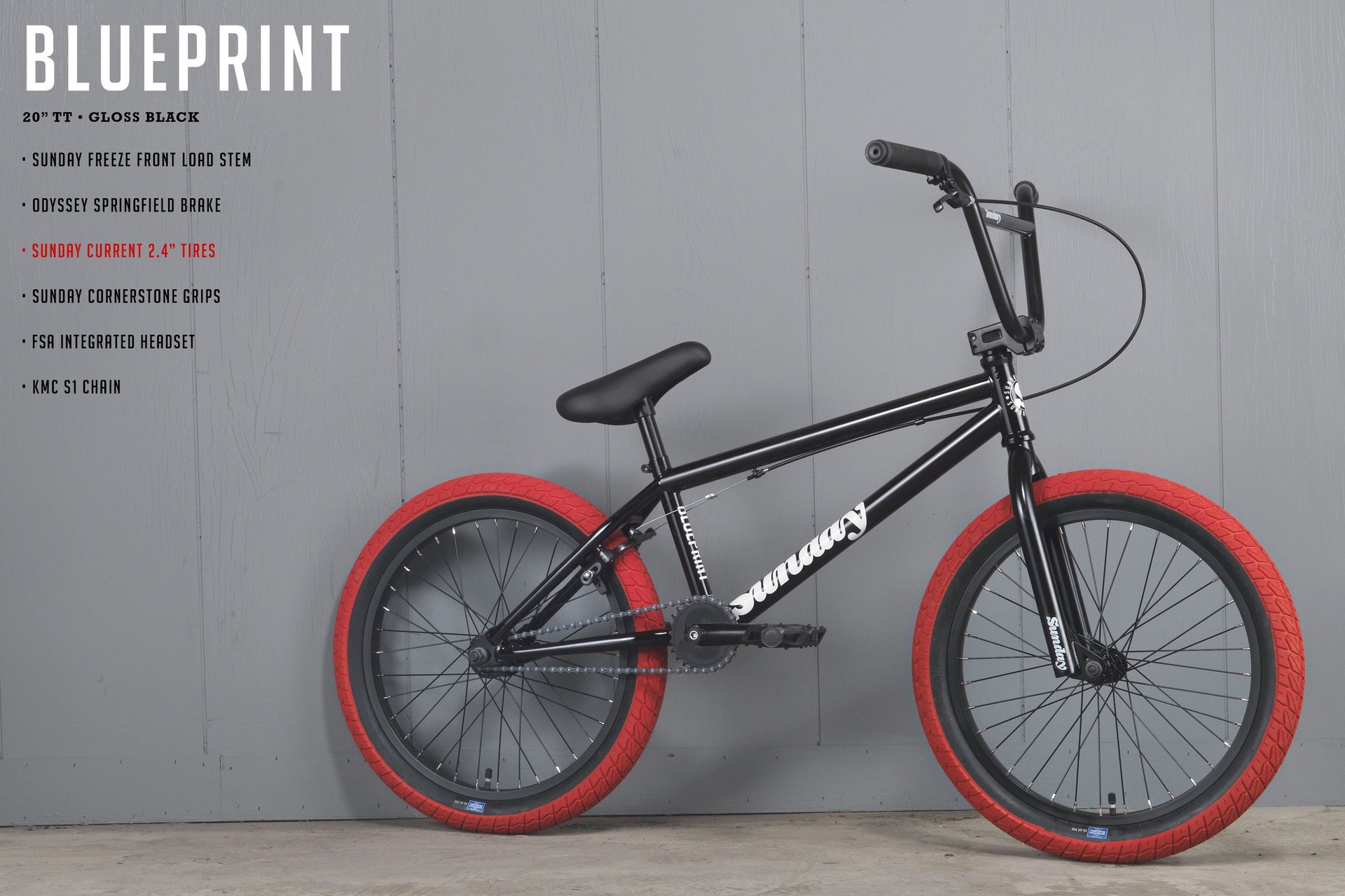

Sunday BluePrint 20TT Gloss Black

The Blueprint is a bike for new riders that is built around a pro-level geometry to help them progress faster.

This bike is equipped with hassle-free parts like Odyssey Springfield brakes, a Sunday Freeze stem and Current 2.4” tires to help keep you focused on the important part - riding. The Blueprint comes with an integrated head tube this year for greater durability, ease of assembly and pro style points.

Key Features

• Sunday Current v2 2.4"
• Odyssey Springfield Brakes
• FSA Integrated Headset
• Sunday Cornerstone Grips
• Sunday Freeze Front Load Stem
• KMC S1 Chain

Specifications

• Frame: Sunday Blueprint, 20" top tube, integrated 1-1/8" head tube
• Fork: Sunday Blueprint, 20" fork w/ 2-piece steerer tube and welded pre-load
• Handlebar: Sunday, 2-piece
• Stem: Sunday Freeze front load, 48mm
• Headset: FSA integrated, 1-1/8"
• Alloy Cap: FSA aluminum cap
• Brake Lever: Aluminum, U-brake compatible
• Brakes: Odyssey Springfield U-brake
• Brake Cable: Odyssey Quik Slic
• Grips: Sunday Cornerstone
• Seat: Sunday Badge, seat and post combo
• Seat Post: Integrated
• Seat Clamp: Integrated
• Sprocket: Sunday S-Logo, 25T, steel
• Cranks: 160mm, 3-piece, chromoly
• BB Parts: Loose-ball, American, 19mm
• Pedals: Wellgo platform, plastic
• Rims: P-7X aluminum, 20", 36H
• Front Hub: Sunday, 36H, low-flange, loose-ball, 3/8" axle
• Rear Hub: Sunday, 36H,14mm axle w/ 9t Driver
• Spokes: 14g steel, black
• Tires: Sunday Current, 20 x 2.4" (F & R), red
• Chain: KMC S1
• Approx. Weight: 26lbs (with brakes)

Frame Geometry

• Top Tube Length: 20"
• Head Tube Angle: 75°
• Seat Tube Angle: 71°
• Chainstay Length: 13.2-13.5”
• Bottom Bracket Height: 11.5"
• Standover: 8.75"

Handlebar Geometry

• Rise: 9"
• Width: 28.5"
• Backsweep: 12°
• Upsweep: 4°
